A bar configuration. More...

#include <ipc.hpp>

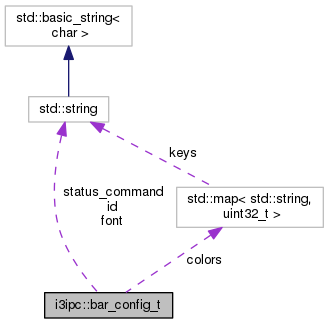

Collaboration diagram for i3ipc::bar_config_t:

Public Attributes
std::string	id
	The ID for this bar. Included in case you request multiple configurations and want to differentiate the different replies.

BarMode	mode

Position	position

std::string	status_command
	Command which will be run to generate a statusline. Each line on stdout of this command will be displayed in the bar. At the moment, no formatting is supported.

std::string	font
	The font to use for text on the bar.

bool	workspace_buttons
	Display workspace buttons or not? Defaults to true.

bool	binding_mode_indicator
	Display the mode indicator or not? Defaults to true.

bool	verbose
	Should the bar enable verbose output for debugging? Defaults to false.

std::map< std::string, uint32_t >	colors
	Contains key/value pairs of colors. Each value is a color code in format 0xRRGGBB.

Detailed Description

A bar configuration.

The documentation for this struct was generated from the following file:
